  One Piece Wafer Flange Ball Valve Current Location£ºHome >> Product

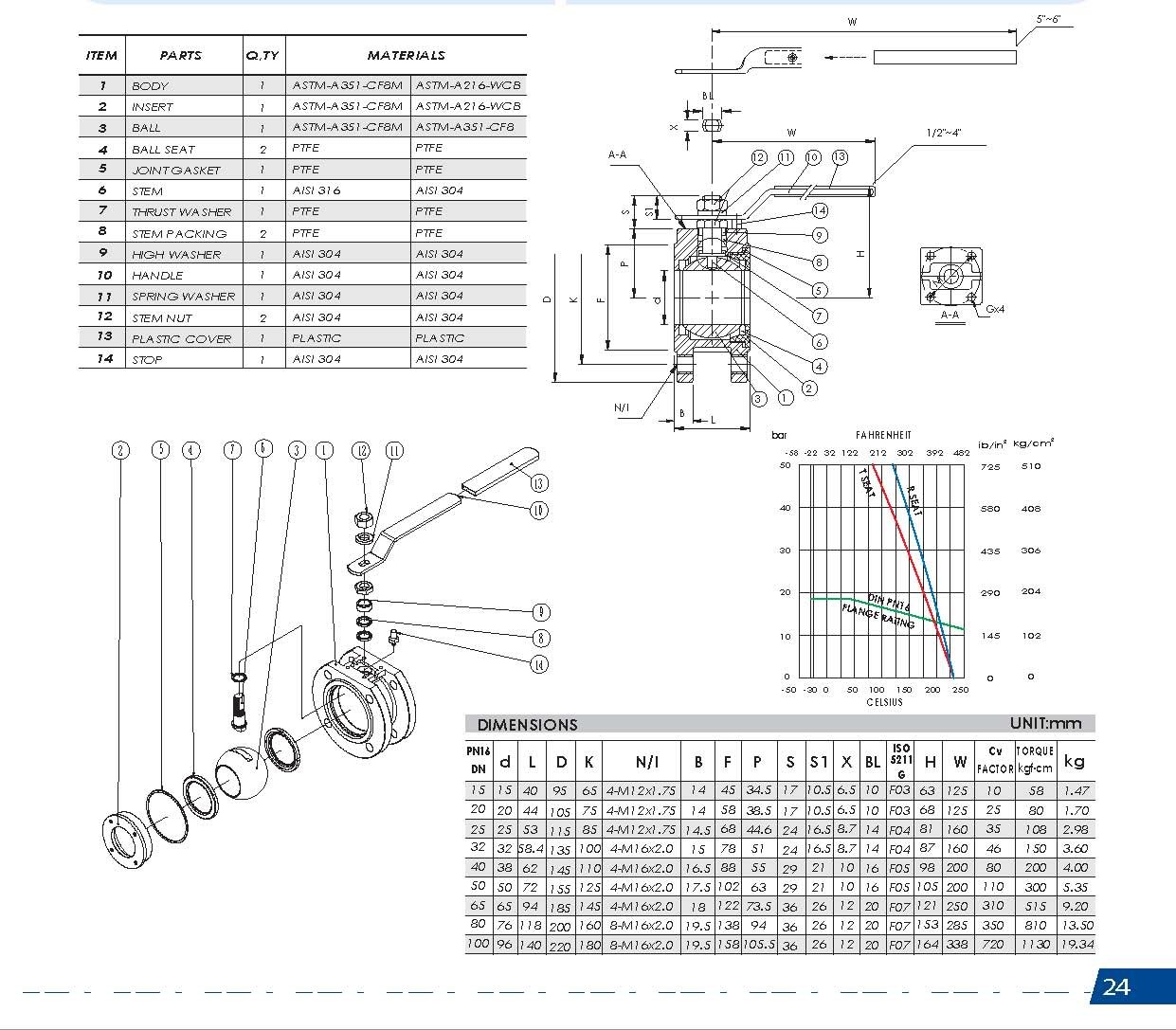

One Piece Wafer Flange Ball Valve
Product Class£º    Product Code£ºDSC_0081

Specifications

Wafer Flange Ball Valve
1)Material:SS304,304L,316,316L
2)Size:1/2-12&DN15-300
3)Certificate:ISO9001:2000

One Piece Wafer Flange Ball Valve

1)Material:WCB SS304,304L,316,316L
2)Size:1/2-12&DN15-DN300
3)Certificate:ISO9001:2000
4)Reduced bore (ANSI 150 LBS~~ANSI 300 LBS)
5)Suitable medium:water,gas,air and some corrosive liquid



Standard:

> Flange dimensions: DIN 2633

> Mounting pad: ISO 5211

> Pressure test rating: ISO 5208



Features:


1.Investment casting body and cap (1/2~12¡±)
2.
Reinforced 15% GF/TEFLON seals and seats

3.Adjustable stem packing
4.Temperature range: -60 to 450 ¡ãf
5.
Stainless steel ball and stem, PTFE gasket

6.Fire safe designed (option)
7.100% leakage tested at 100 psi air under water
